V-Lock
Metal Work presents an exclusive new modular system for automation
- It can connect anything to anything: grippers, slides, rotary actuators or guide units, or even aluminium structures of any make.
- It can have any spatial orientation.
- It is very easy to connect, quick to lock and accessible from all sides.
- There is no need for adaptor plates between components.
- The connection is extremely robust, precise and repeatable.
Each component in the V-Lock series has a dovetail that is 40 mm wide and extends the entire length. There are longitudinal precision slots, 6H7 wide, 20 mm pitch, in which a perforated key is inserted. To connect two components, merely bring them into contact and tighten the M5 screws in the universal fixing element K.
The continuously expanding V-Lock catalogue includes precision slides, guide units coupled with ISO15552 and 6432 cylinders, rodless cylinders, rotary actuators, grippers, electric linear actuators and numerous accessories.
-
Rotary actuator R3K + Bracket + Gripper P1K + vacuum unit
-
Compact guided cylinder CMPGK + Guide unit GDHK + Gripper P7K
-
Fanuc robot + Guided compact cylinders CMPGK + Grippers P2K + Rotary unit R3K
-

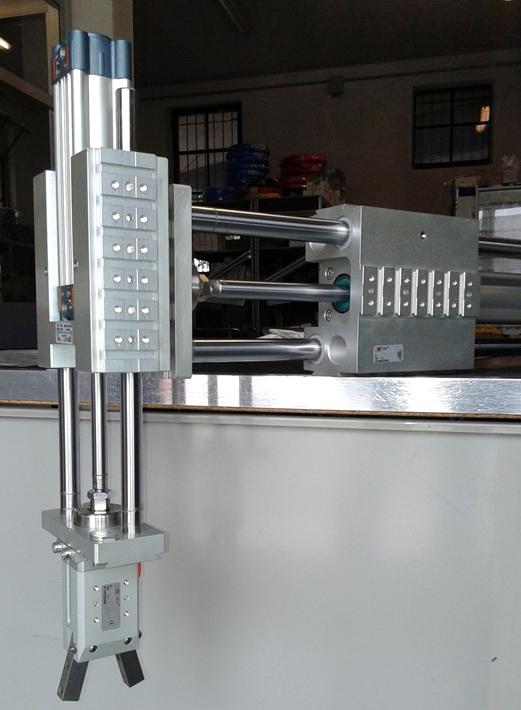

Guide unit GDHK + Precision slide S14k + Rotary actuator R3K+ Gripper P4K + Gripper P7k
-
Rodless cylinder V-Lock + Precision slide S14K
-
Quick set + Precision slide S14K + Precision slide S14K + Gripper P1K
-

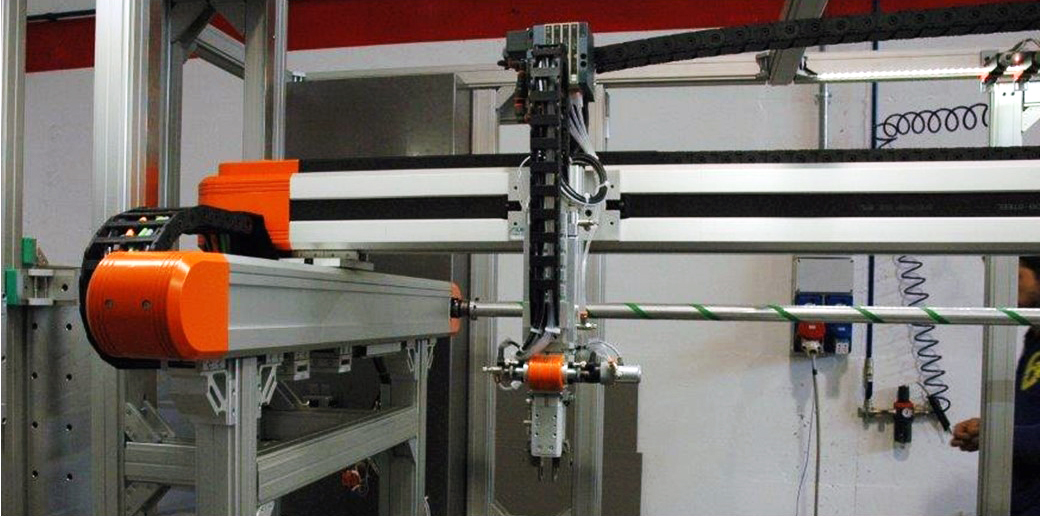

Quick set + Gantry SHAK + Axis SHAK + Precision slide S14K + Rotary actuator DAPK + Gripper P1k
-
Quick set + various Precision slides S14K
-
Guide unit GDHK+ Guide unit GDHK
-

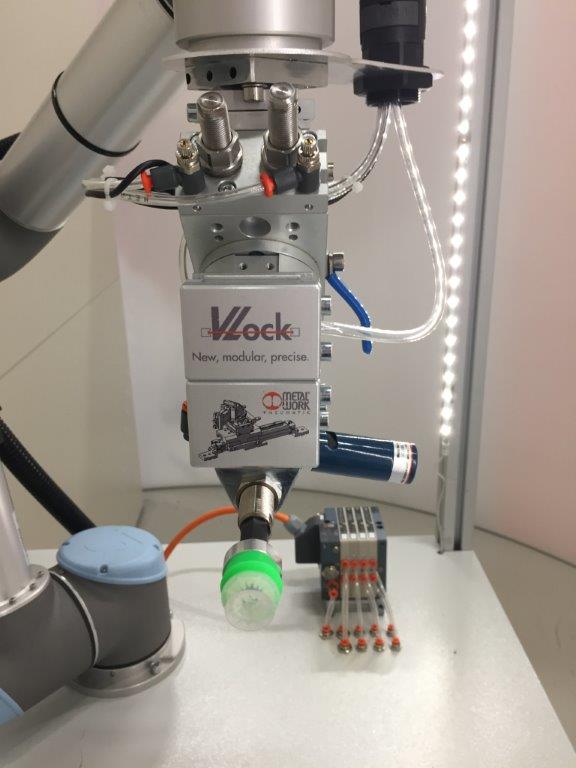

V-Lock Components + Collaborative Robot 1
-
V-Lock Components + Collaborative Robot 2
